The vessel page is where compliance teams spend most of their time. It shows everything one vessel did in one year, across all five regulations.

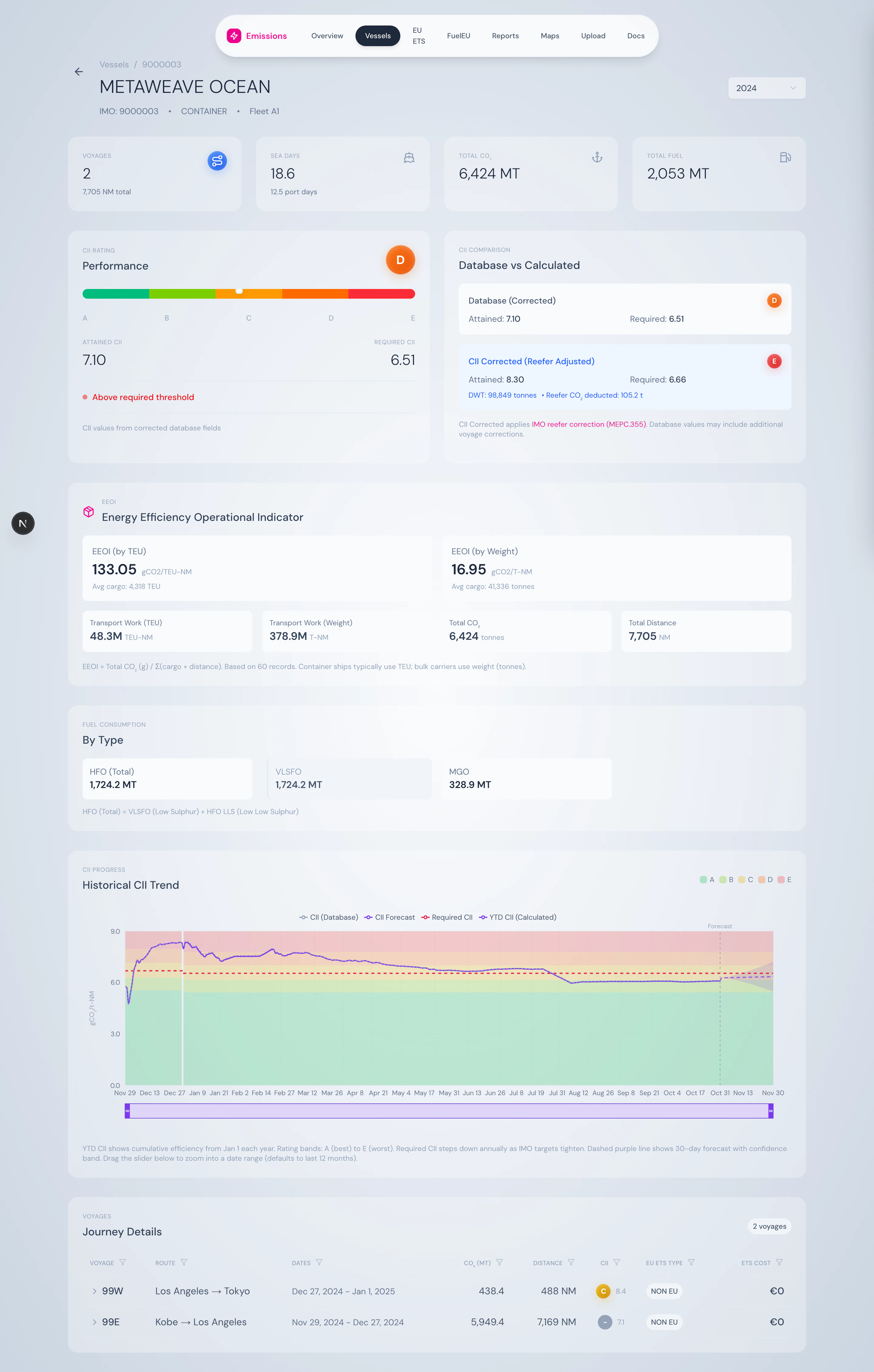

Vessel detail header

​
What’s on the page

​
Summary cards

Four cards across the top: Voyages (count + total distance), Sea Days (+ port days), Total CO₂, Total Fuel. Each card is one number plus a sub-figure for context.

​
CII performance

CII gauge and comparison box
A radial gauge plots Attained CII against the required line, with A/B/C/D/E zones drawn in the background. Next to it, a comparison box shows two CII values:
  • Database CII — what’s reported in the consumption logs
  • Corrected CII — with reefer container CO₂ stripped out per MEPC.355(78)
A link opens the MEPC.355(78) PDF in an in-app slide-out panel for reference.

​
EEOI

EEOI panels
Two EEOI numbers, calculated automatically based on ship type:
  • EEOI by TEU — gCO₂ / TEU-NM (for container ships)
  • EEOI by Weight — gCO₂ / tonne-NM (for bulkers and general cargo)
Plus the underlying transport work, total CO₂, total distance, and average cargo per voyage.

​
Fuel breakdown

Fuel breakdown panel
Tonnes by fuel type, displayed hierarchically:
  • HFO (Total) = VLSFO + HFO LLS
  • MDO / MGO
  • LNG, Methanol, Biofuel blends, etc.

​
CII rolling chart

CII rolling chart
Daily Attained CII plotted over a multi-year window (2023 → current+1 year by default), with the year’s Required CII as a stepped baseline. Rating bands are drawn as background colours. A brush at the bottom lets you zoom into any date range.

​
Voyages table — expandable

Expandable voyages with legs
One row per voyage with route, dates, total CO₂, distance, average CII, ETS classification, and ETS cost. Click any row to expand into a sub-table of legs:
  • Leg # and route (port → port)
  • Sea CO₂, sea-covered (with coverage %), EU port CO₂, total covered
  • ETS coverage factor applied per leg
This is the most detailed view of how the EU ETS bill is built up for each vessel.

​
What you can do here

  • See exactly which voyage and which leg generated each tonne of covered CO₂
  • Compare attained CII trends against the required threshold over time
  • Verify that reefer correction has been applied correctly
  • Pick a year and see the year-end picture, or use YTD for live monitoring
  • Use the breadcrumb to jump back to the fleet view

​
Source

Powered by /api/vessels/[imo], /api/vessels/[imo]/cii-daily, and /api/vessels/[imo]/voyages. Business logic in VoyageSegmentService and FleetService.
