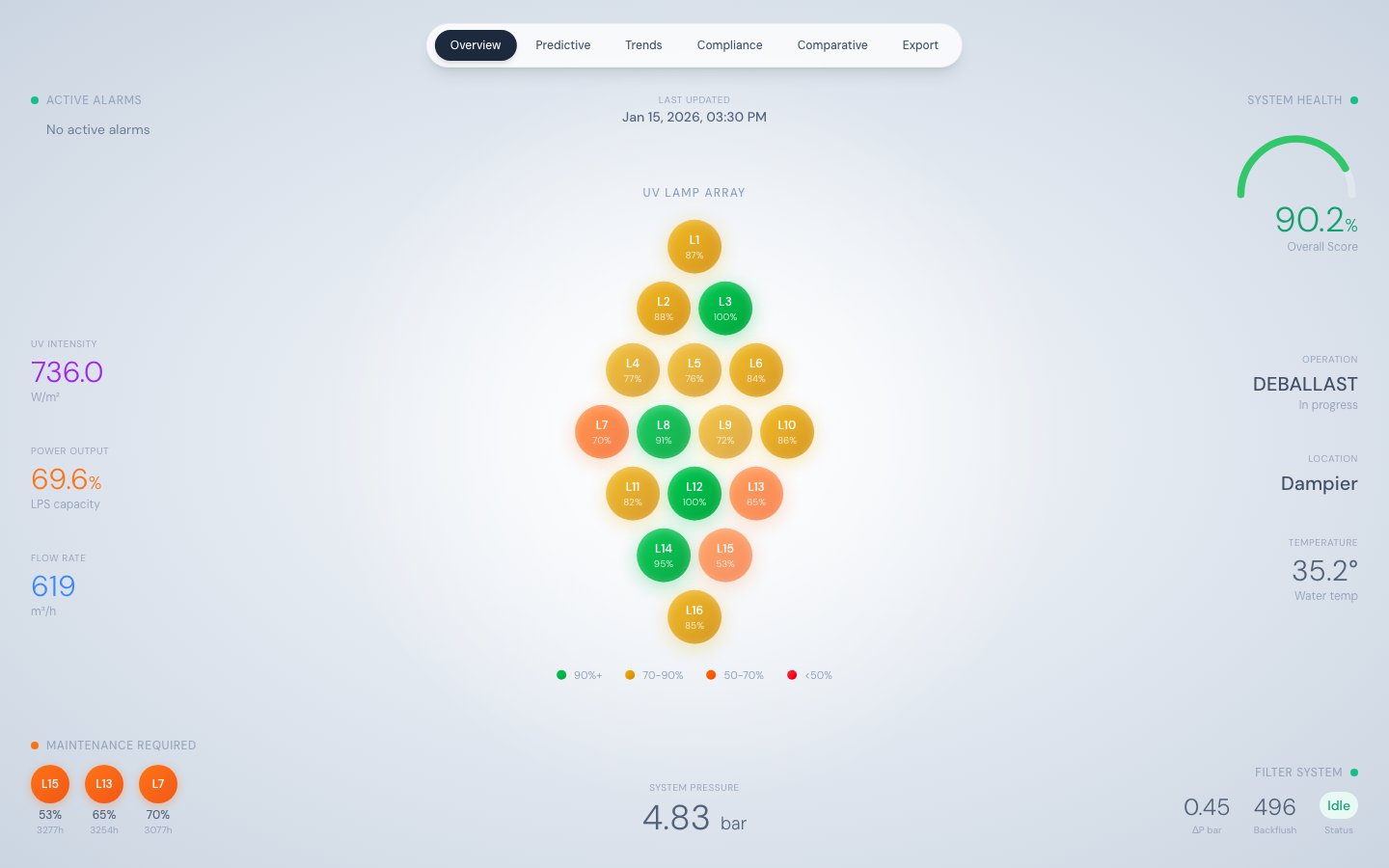

Layout philosophy
The Overview tab uses a radial “gravitational” design — the 16-lamp diamond array occupies the centre of the screen as the primary focal point, and all supporting metrics float at the edges. There are no card borders or containers; typography hierarchy and spacing replace visual dividers. The background is a radial gradient from light slate to medium slate.
Data is fetched from /api/stats and auto-refreshes every 30 seconds.

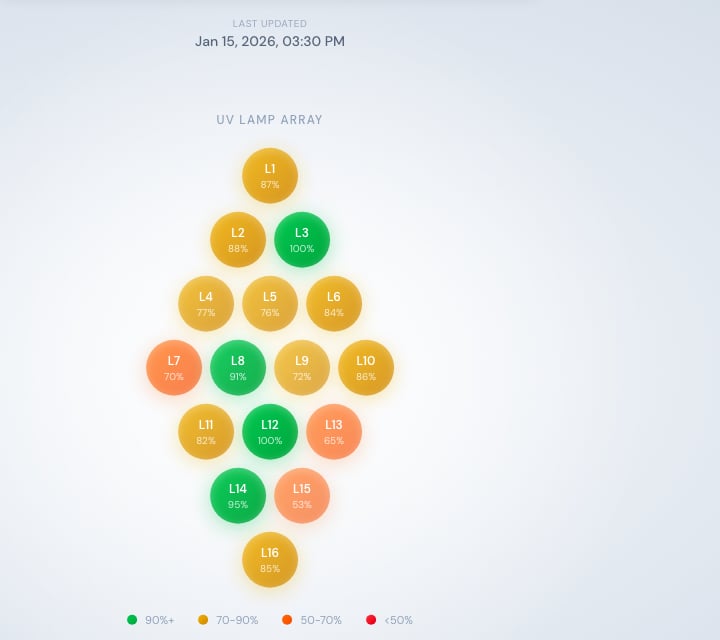

The diamond lamp array
The 16 UV lamps are arranged in a diamond pattern (rows: 1-2-3-4-3-2-1). Each lamp circle shows:
- Lamp number — L01 through L16
- Efficiency percentage — the current
LAMP_XX_EFFICIENCY value
- Colour — coded by efficiency tier (see table below)
- Opacity — scales with efficiency, providing an immediate at-a-glance scan
Hover over any lamp circle to see a tooltip with exact efficiency, runtime hours, and operational status.
Lamp colour coding
| Colour | Efficiency | Meaning |
|---|
| Green | ≥ 90% | Excellent — nominal operation |
| Yellow | 70–89% | Good — monitor, plan future replacement |
| Orange | 50–69% | Warning — schedule replacement at next port |
| Red | < 50% or FAILED | Critical — urgent attention required |
Metric panels
Top-left: Active Alarms
Displays the last 3 ALARM_TRIGGERED events from the event feed. An animated amber dot appears when any alarm is present. Each entry shows the event description and timestamp. Source: /api/stats → recentEvents.
Top-right: System Health Gauge
An SVG arc gauge showing the overall_score (0–100) from the latest health record. The colour of the gauge arc changes with the score:
| Score | Gauge colour |
|---|
| ≥ 80 | Green |
| 60–79 | Blue |
| 40–59 | Orange |
| < 40 | Red |
Left side: UV and power metrics
| Metric | Field | Unit |
|---|
| UV Intensity | UVR_INTENSITY | W/m² |
| Power Output | UVR_POWER_OUTPUT | % of rated capacity |
| Flow Rate | SYS_FLOW_RATE | m³/h |
Right side: Operational context
| Metric | Field | Description |
|---|
| Operation Type | operation_type | BALLAST or DEBALLAST |
| Location | location | Current port name |
| Water Temperature | UVR_WATER_TEMP | °C |
Bottom-left: Maintenance Required
Lists up to three lamps with efficiency below 75% or runtime above 2,500 hours, sorted by lowest efficiency first. This provides an at-a-glance maintenance priority list without navigating to the Predictive Maintenance tab.
Bottom-center: System Pressure
Displays SYS_PRESSURE in bar.
Bottom-right: Filter System
| Metric | Field |
|---|
| Differential pressure | FLT_DIFF_PRESSURE (bar) |
| Backflush cycle count | FLT_BACKFLUSH_COUNT |
| Backflush active status | FLT_BACKFLUSH_ACTIVE |
What you can do here
- Get an immediate read on system health without navigating any menus
- Spot failing or degraded lamps instantly by scanning the diamond for red or orange circles
- Check whether UV intensity is above the IMO (252 W/m²) or USCG (530 W/m²) compliance threshold
- See recent alarms and their timestamps
- Monitor filter backflush activity which can indicate water quality issues
Source
Data is served by /api/stats, which runs four parallel database queries and returns latestTelemetry, latestHealth, recentEvents, and monthlyAvg in a single response. This keeps the Overview tab to a single HTTP round-trip.
