Class Society Surveillance - Applied AI Foundation

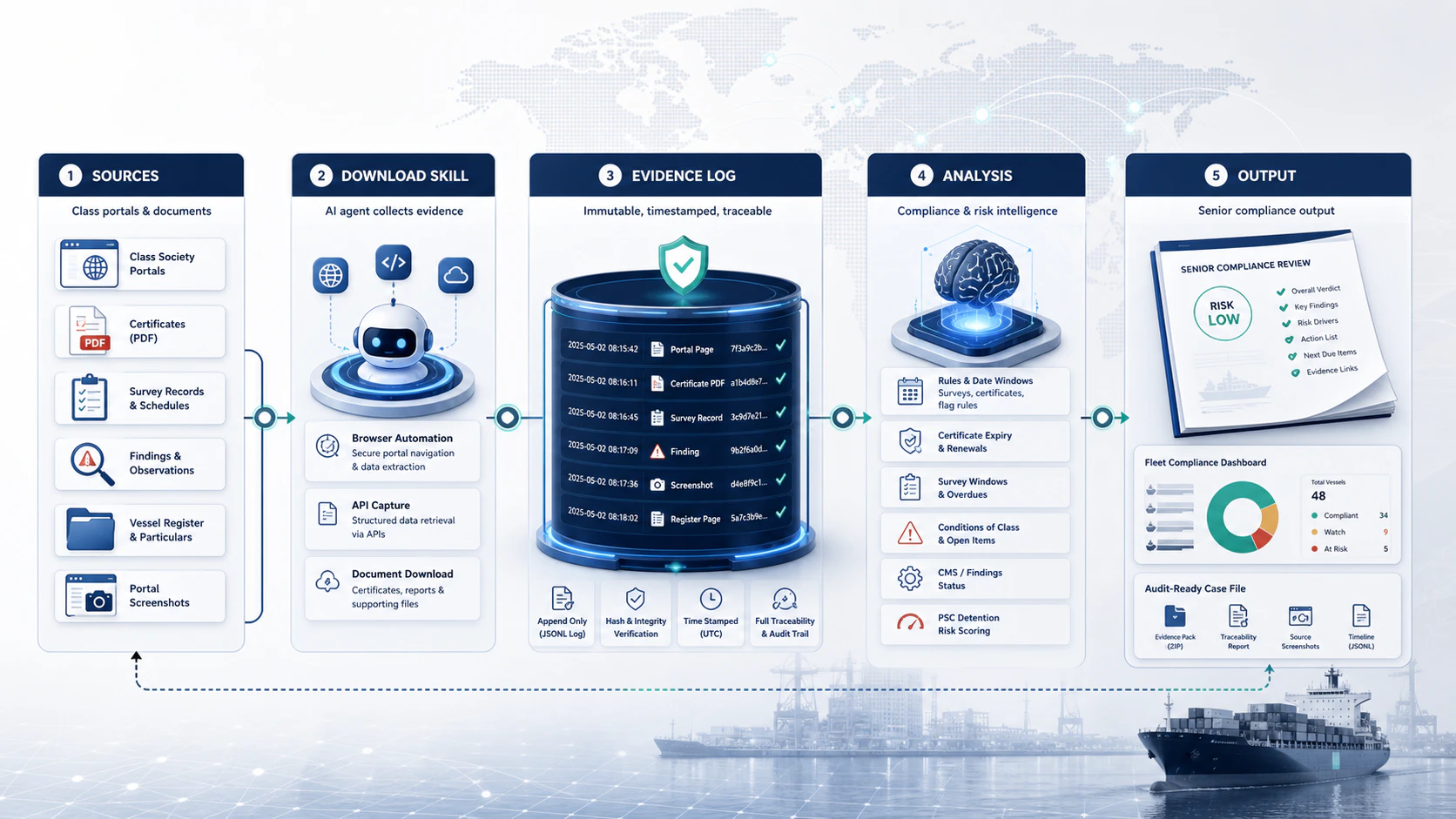

Class Society Surveillance pipeline showing source portals and documents, download skill, evidence log, analysis skill, and senior compliance output

Executive summary

Maritime class compliance is the single largest source of operational risk a Technical Superintendent manages. A missed survey can trigger a Condition of Class. An overdue Continuous Machinery Survey item can escalate into a hold. A statutory certificate that lapses at sea is a vessel detention waiting to happen at the next port. The Class Society Surveillance pipeline keeps every vessel’s class state visible, current, and audit-ready. It scrapes the class society’s own portal — ABS today, with the same pattern extending to BV, DNV, LR, CCS, KR, RINA, NK, IRS — pulls the structured data behind every page, captures a screenshot of each page, then runs a battery of analyses that classify surveys and certificates against operating thresholds and produce a senior expert review. The pipeline is designed so every number on the review traces back to a timestamped portal snapshot. Class disputes are won on documentation, not arguments.

Architecture

       ┌─────────────────────────────────────┐
       │  Class society portal (ABS, BV, …)  │
       └──────────────┬──────────────────────┘
                      │ XHR responses + page screenshots
                      ▼
       ┌─────────────────────────────────────┐
       │   Stage 1 — Data collection         │
       │   Browser automation (Playwright)   │
       │   Pages: vessels list, overview,    │
       │   certificates, surveys, findings,  │
       │   assets                            │
       └──────────────┬──────────────────────┘
                      │ structured JSON + PNGs
                      ▼
       ┌─────────────────────────────────────┐
       │   Stage 2 — Analysis battery        │
       │   • Certificate status              │
       │   • Survey due dates                │
       │   • Conditions of Class & memos     │
       │   • CMS items                       │
       │   • Docking survey                  │
       │   • Next periodical survey          │
       │   • Survey dashboard                │
       └──────────────┬──────────────────────┘
                      │ classifications + scores
                      ▼
       ┌─────────────────────────────────────┐
       │   Stage 3 — Expert review           │
       │   PSC detention-risk verdict        │
       │   Recommended actions               │
       │   Escalation to TSI if required     │
       └─────────────────────────────────────┘

Stage 1 — Data collection

Where the data comes from

Each major class society has a dedicated portal scraper. The pipeline reads from the society directly — no ERP intermediary, no email parsing — so the snapshot matches what the society itself shows.

	Class society	Coverage
	ABS — American Bureau of Shipping	Surveys, certificates, findings, assets
	Bureau Veritas (BV)	Surveys, certificates, findings, conditions of class
	DNV — Det Norske Veritas	Surveys, certificates, findings, asset register
	Lloyd’s Register (LR)	Surveys, certificates, findings, CMS items
	ClassNK — Nippon Kaiji Kyokai (NK)	Surveys, certificates, findings
	CCS — China Classification Society	Surveys, certificates, findings
	KR — Korean Register	Surveys, certificates, findings
	IRS — Indian Register of Shipping	Surveys, certificates, findings
	RINA (Italian classification society)	Surveys, certificates (date-precedence rules differ — see below)

When a vessel is dual-classed (class with two societies for different statutory items), the pipeline reads both and reconciles by certificate type. The fleet view always renders the primary class first.

Class society logos shown are sourced from Wikimedia Commons / public press kits and used under nominative trademark fair use to identify the respective organisations. Each logo remains the trademark of its owner.

What gets captured

Page	Data
Vessels list	Fleet roster as the class society sees it
Overview	Class status, register details, key dates
Certificates	Statutory and class certificates with issue / expiry / extension dates and downloadable PDFs
Surveys	Due dates, completion status, window periods
Findings	Open and closed findings — Conditions of Class, Memoranda, Notes, Recommendations
Continuous Machinery	Per-component CMS items with last completed and next due dates
Assets	Equipment register and condition flags

A timestamped screenshot is captured alongside each page so a reviewer can verify the recorded numbers came from the live portal.

Acquisition flow

Verify portal reachability

Confirms the class portal is up before launching the scraper. A failed health check stops the run rather than producing partial evidence.

Open portal in foreground browser

The user’s Chrome opens to the portal. Useful for live demos and for spot-checking the data the scraper sees.

Run headless scraper in parallel

Playwright walks the portal pages in a separate browser context. Every page’s API call is intercepted; the structured response and a full-page screenshot are saved.

Bundle into evidence record

JSON + screenshots land in a single timestamped folder. The case file is updated so any reviewer or analyzer knows new evidence is available.

Output structure

case_files/vessels/{IMO}/class_surveys/
├── raw_data/
│   └── abs_2026-04-30.json          # all scraped page responses
├── documents/
│   └── certificates/*.pdf           # downloaded certificate copies
├── screenshots/
│   ├── 01_vessels_list.png
│   ├── 02_overview.png
│   ├── 03_certificates.png
│   ├── 04_surveys.png
│   ├── 05_findings.png
│   └── 06_assets.png
└── activity_log.jsonl               # append-only run log

Every collection is append-only. Re-running the scraper never overwrites earlier snapshots — historical class state is preserved.

Stage 2 — Analysis battery

The scraper produces evidence; eight analysis templates turn that evidence into actionable intelligence. Each template is independently runnable but they share a common set of primitives — date parsing, status classification, age scoring — so the verdicts compose cleanly into the final review.

2.1 Certificate status

Every statutory and class certificate is classified against an effective expiry date. The effective date is the maximum of the issued expiry and any extension on file:

D_\text{effective} = \max(D_\text{expiry}, \; D_\text{extension})

The remaining validity in days drives the verdict:

\Delta_\text{days} = D_\text{effective} - D_\text{today}

Status	Condition	Colour
Overdue	$\Delta_\text{days} \leq 0$	red
Due in N days	$0 < \Delta_\text{days} \leq 90$	orange
In Order	$\Delta_\text{days} > 90$	green
Full term — flag-issued	Panama-flag certificates in BWMC / IHM / ISSC categories that are administratively flag-extended	green

Code snapshot

# Effective expiry is the later of expiry and any extension
max_date = max(
    pd.to_datetime(extension_date, errors="coerce"),
    pd.to_datetime(expiry_date,    errors="coerce"),
    key=lambda x: x if pd.notnull(x) else datetime.min,
)

days_diff = (max_date - current_date).days

if days_diff is None:
    status = {"status": "In Order", "color": "green"}
elif days_diff <= 0:
    name = cert.get("certificateName", "").lower()
    if any(t in name for t in ("ballast", "bwm", "hazardous", "ihm",
                                "security", "issc")) and "panama" in vessel_flag:
        status = {"status": "Full term certificate is issued by the flag",
                  "color": "green"}
    else:
        status = {"status": "Overdue", "color": "red"}
elif days_diff <= 90:
    status = {"status": f"Due in {days_diff} days", "color": "orange"}
else:
    status = {"status": "In Order", "color": "green"}

The flag-specific override matters — a Panama-flagged vessel with a fully flag-issued BWMC is technically compliant even when the class certificate looks expired in the portal. Hard-coding “expired = overdue” without that nuance produces false positives that erode trust in the review.

2.2 Survey due dates

Surveys carry an extra dimension certificates don’t: a window period. A vessel is in compliance if a survey is completed within the window, even if the formal due date has passed. The effective date for a survey:

D_\text{effective} = \max(D_\text{due}, \; D_\text{postponed}) \;\;\text{or}\;\; D_\text{window\_end}

Survey verdicts add an “In Window Period” state that certificates don’t have:

Status	Condition
In Window Period	$D_\text{window\_start} \leq D_\text{today} \leq D_\text{window\_end}$
Overdue	$\Delta_\text{days} \leq 0$
Due in N days	$0 < \Delta_\text{days} \leq 90$
In Order	$\Delta_\text{days} > 90$

Code snapshot

def calculate_survey_status(surveys):
    survey_list = []
    for survey in surveys:
        due_date          = parse_date(survey.get("dueDate"))
        window_start_date = parse_date(survey.get("windowStartDate"))
        window_end_date   = parse_date(survey.get("windowEndDate"))
        postponed_date    = parse_date(survey.get("extendedDate"))

        # Effective date — latest of due / postponed, fallback to window end
        dates = [d for d in (due_date, postponed_date) if d]
        max_date = max(dates) if dates else window_end_date
        days_diff = (max_date - current_date).days if max_date else None

        if window_start_date and window_end_date \
           and window_start_date <= current_date <= window_end_date:
            status = {"status": "In Window Period", "color": "orange"}
        elif days_diff is None:
            status = {"status": "In Order", "color": "green"}
        elif days_diff <= 0:
            status = {"status": "Overdue", "color": "red"}
        elif days_diff <= 90:
            status = {"status": f"Due in {days_diff} days", "color": "orange"}
        else:
            status = {"status": "In Order", "color": "green"}

2.3 Conditions of Class & findings

Findings are classified by the header they fall under — Conditions of Class are operationally restrictive; Memoranda and Notes are advisory. The classifier reads the criticality field and routes the finding:

def determine_header(row):
    criticality = row["criticality"]
    if pd.isna(criticality):
        return "Notes"
    s = str(criticality).strip()
    if "CoC" in s:
        return "CoC"
    sl = s.lower()
    if "exempti" in sl:    return "Exemption"
    if "memorand" in sl:   return "Memoranda"
    if "recommend" in sl:  return "Recommendation"
    return "Notes"

Every finding gets the same expiry-style classification (overdue / in order) using its own due and extended dates. Open Conditions of Class with a near deadline are the highest-weight contributor to detention risk.

2.4 Continuous Machinery Survey (CMS)

CMS items are credited if they were last completed within a 365-day window. Otherwise the item is classified by its remaining days, with class-specific date sources:

\text{CMS status}(c) = \begin{cases} \text{Credited} & \text{if } 1 \leq (D_\text{today} - D_\text{lastDate}) \leq 365 \\ \text{Overdue} & \text{if } \Delta_\text{days} \leq 0 \\ \text{Due in } N & \text{if } 0 < \Delta_\text{days} \leq 90 \\ \text{In Order} & \text{otherwise} \end{cases}

Different class societies use different precedence rules — RINA only honours the original due date, while NK / LR / CCS / IRS / BV / ABS / KR / DNV all consider the extended date if present. The script encodes that per-society logic explicitly.

2.5 Docking and next periodical survey

These are special-case surveys that drive dry-dock planning. The same windowing maths applies, but the verdict carries operational weight: an imminent docking survey couples to charter party off-hire, drydock-yard slot booking, and SIRE / vetting calendars.

2.6 Survey dashboard rollup

The final step assembles a vessel-level dashboard combining every analysis above into a single status grid: how many overdue, how many due-soon, how many in-window, count per class society. This is what populates the executive summary of the senior review.

Stage 3 — PSC detention-risk score

Open findings, overdue items, and impending CoC deadlines compose into a weighted detention-risk composite:

R_\text{psc} = w_1 S_\text{overdue} + w_2 F_\text{critical} + w_3 C_\text{cond} + w_4 R_\text{recur} + w_5 P_\text{psc}

where:

$S_\text{overdue}$ — count of surveys overdue
$F_\text{critical}$ — open critical findings
$C_\text{cond}$ — Conditions of Class within 30 days
$R_\text{recur}$ — recurring deficiency themes (3+ findings on same system)
$P_\text{psc}$ — recent PSC inspection density at the next port’s regime

The composite maps to LOW / MEDIUM / HIGH / CRITICAL. HIGH or CRITICAL routes the case automatically to the Technical Superintendent.

Worked example

Vessel: MV POSUN (IMO 9388340), ABS classed, Panama flag. After a refresh:

Domain	Findings
Certificates	14 in order, 1 overdue (BWMC — covered by flag full-term, classified green), 2 due within 90 days
Surveys	8 in order, 1 overdue (Annual hull — postponed once already), 1 in window period
CoC / findings	2 Conditions of Class open: one due in 18 days (steering gear test), one in 45 days
CMS	2 items credited within last 12 months, 1 overdue (turbocharger inspection)

The detention-risk composite scores HIGH — driven primarily by the overdue annual hull survey and the 18-day CoC. The pipeline:

Tags the run with escalation_required: true
Updates the case to awaiting-tsi-review, priority CRITICAL
Sends an A2A message to the TSI inbox with links to the snapshot, the dashboard, and the recommended actions

Recommended actions (from the analyzer):

Schedule annual hull survey at next port — co-ordinate surveyor attendance window. Estimated cost USD 4–6k.
Steering-gear function test — workshop attendance required before 2026-05-19.
Turbocharger CMS inspection — book superintendent attendance at next docking window (28 days out).

Output deliverables

The senior review produced by the analyzer contains:

Executive summary — overall class status and headline counts
Survey status table — per-survey verdict, due date, window
Certificate portfolio — every certificate with effective expiry and verdict
Findings analysis — distribution by severity, age, recurring themes
Conditions of Class — deadlines and remediation plan
CMS items — credited / overdue / due-soon list
PSC detention-risk — score, contributing factors, mitigation
Recommendations — prioritised by deadline and impact, with cost estimate
Escalation decision — auto-routed to TSI when triggers met

Escalation triggers

Trigger	Severity
Any survey overdue	CRITICAL
Condition of Class within 30 days unresolved	CRITICAL
Open critical finding older than 60 days	HIGH
Recurring deficiency theme (3+ findings on same system)	HIGH
CMS item overdue	HIGH
Class status downgraded	CRITICAL

Why a script-driven pipeline

Surveys are quantitative — dates and rules. Threshold logic, age clustering, and the per-society precedence rules all live in deterministic Python. The language model interprets the result and writes the review; it never recomputes the verdicts. That keeps reviews consistent across vessels and audits, traceable (every figure in the review traces to a date in the snapshot), and cheap (analysis is a script, not a model call).

Manual class reviews are where errors compound. A surveyor types the wrong date into one cell of a spreadsheet and the next four reviews inherit the mistake. A script-based pipeline reads the portal, computes the verdict, and shows its working — every number is reproducible from the snapshot.

References

Source skill: class-society-data

Browser scraper that drives the portal and bundles the snapshot.

Source skill: class-society-analyzer

Senior agent that runs the analysis battery and writes the review.

Templates: class_analysis/

Eight analysis templates: certificate status, survey due dates, conditions of class, CMS, docking, periodical, dashboard.

Related: certificates

Statutory and trade certificates not covered by class.

Documentation Index

​Executive summary

​Architecture

​Stage 1 — Data collection

​Where the data comes from

​What gets captured

​Acquisition flow

​Output structure

​Stage 2 — Analysis battery

​2.1 Certificate status

​Code snapshot

​2.2 Survey due dates

​Code snapshot

​2.3 Conditions of Class & findings

​2.4 Continuous Machinery Survey (CMS)

​2.5 Docking and next periodical survey

​2.6 Survey dashboard rollup

​Stage 3 — PSC detention-risk score

​Worked example

​Output deliverables

​Escalation triggers

​Why a script-driven pipeline

​References

Source skill: class-society-data

Source skill: class-society-analyzer

Templates: class_analysis/

Related: certificates

Executive summary

Architecture

Stage 1 — Data collection

Where the data comes from

What gets captured

Acquisition flow

Output structure

Stage 2 — Analysis battery

2.1 Certificate status

Code snapshot

2.2 Survey due dates

Code snapshot

2.3 Conditions of Class & findings

2.4 Continuous Machinery Survey (CMS)

2.5 Docking and next periodical survey

2.6 Survey dashboard rollup

Stage 3 — PSC detention-risk score

Worked example

Output deliverables

Escalation triggers

Why a script-driven pipeline

References
