This walkthrough touches every part of the system: the form, Submit, the local archive, the email path, the pipeline, and the database. Skim it first, then dive into the specific section that matters to you.Documentation Index
Fetch the complete documentation index at: https://docs.appliedaifoundation.org/llms.txt
Use this file to discover all available pages before exploring further.
Open the form
The crew double-clicks
Metaweave-Reports.html in Chrome or Edge. Everything is embedded — jQuery, CryptoJS, all the dropdowns, all the validation rules. No internet needed.The left sidebar lists the five report tabs: Noon, Arrival, Departure, Bunker, Statement of Facts.Fill the report

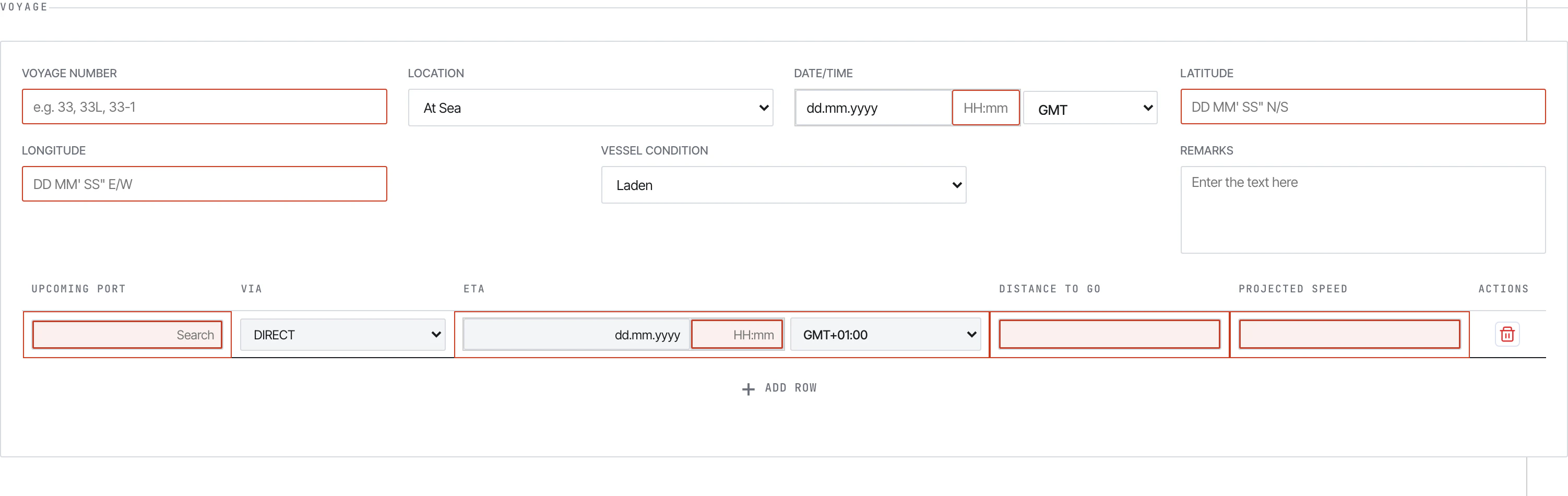

The Master fills the daily fields: voyage number, position (DMS), vessel condition, weather, distance, engine hours, fuel ROBs, generators, scrubber, slops, and so on. Auto-calculated fields (Slip %, Reported Speed, Average RPM) are read-only — fix the inputs that feed them.See Filling reports for the section-by-section walkthrough.
Submit

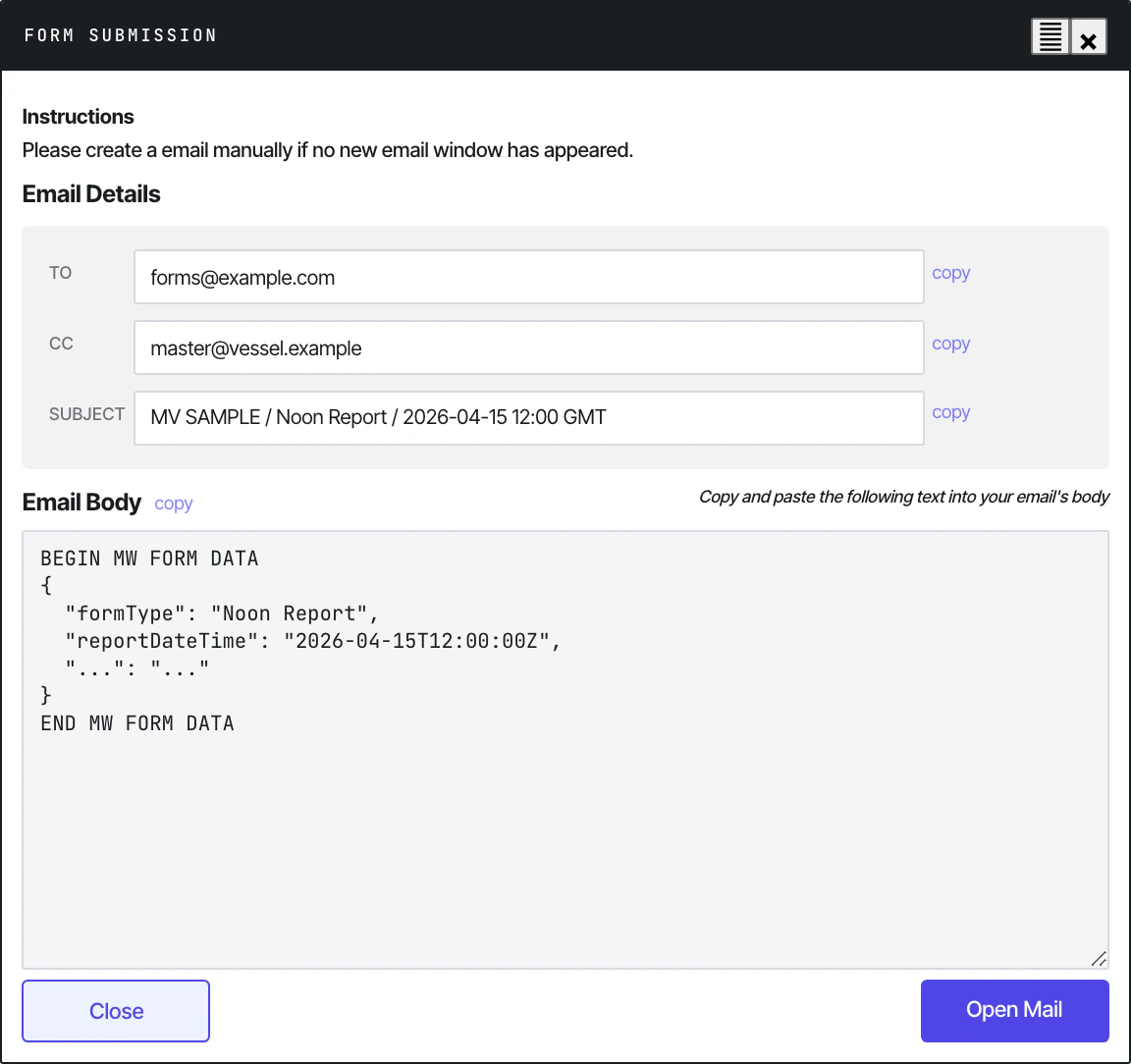

Click Submit at the bottom of the report. The form runs validation, then opens a
Form Submission modal showing the encoded payload.BEGIN MW FORM DATA … END MW FORM DATA), pastes it into a plain-text Outlook email with the standardised subject Metaweave Forms: VESSEL - Report Type - DD.MM.YYYY, and sends it.See Submitting for the full flow.The submission is archived locally
Behind the scenes, every Submit also appends to
history.json on the vessel’s shared drive — read-write through the browser’s File System Access API. A small toast confirms Archived (insert). N rows in history.Browse past submissions

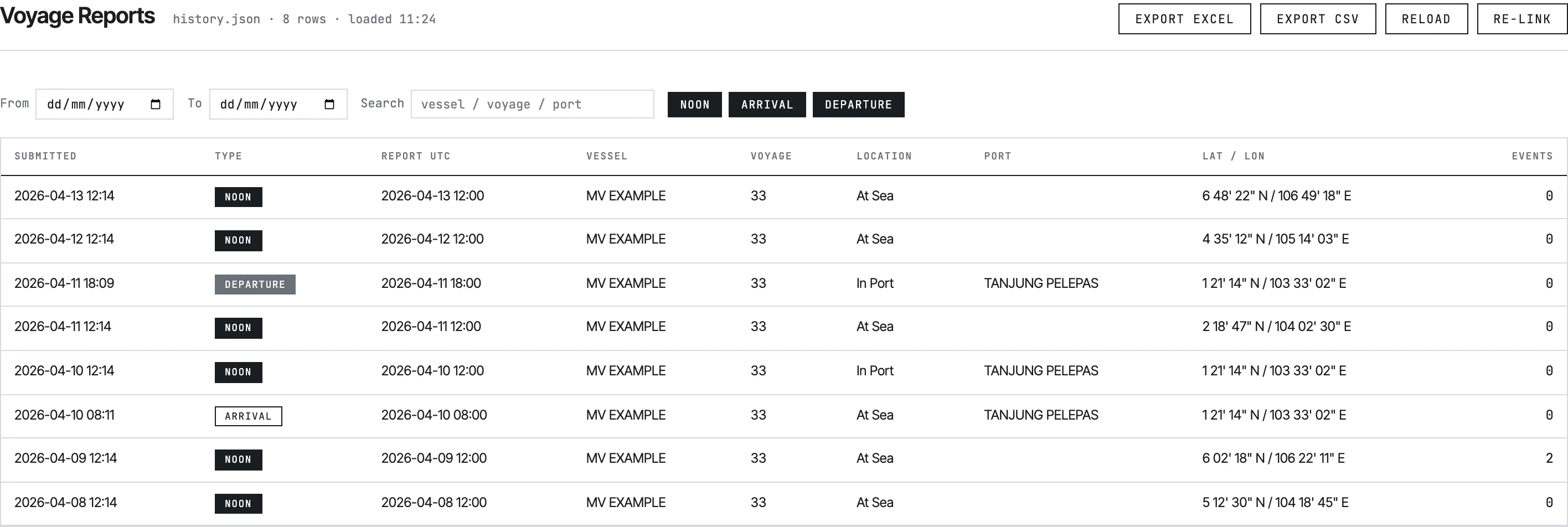

Open
Metaweave-History-Viewer.html from the same shared folder and link the same history.json. The viewer lists every report ever submitted across four tabs (Voyage, SOF, Bunker, Month-End ROB) with date filters, search, and Excel/CSV export.Pipeline picks up the email
On shore,
python -m src.main runs on a schedule. It logs into the shared Outlook mailbox via Microsoft Graph, pulls every unread message with Metaweave Forms in the subject, decrypts the payload (AES-128-CBC), maps the 92-field JSON to SQLAlchemy models, and upserts to PostgreSQL.See Running the pipeline and ETL stages.Row lands in Postgres
Each submission becomes one row in
metaweave_report plus child rows in 11 satellite tables (events, bunker ROBs, upcoming ports, FOWE periods, scrubber breakdowns, BDN deliveries, biofuels, SOF activities, cargo, month-end, berthing). Re-submitting a corrected report replaces the previous one — (vessel_id, report_type, report_datetime_utc) is unique, and CASCADE deletes wipe the children.See Data model.Where to go next
Form overview
Tabs, layout, sidebar, validation philosophy.
History setup
How office configures, vessel links, what archives per Submit.
Pipeline overview
ETL diagram and stage-by-stage walkthrough.
Guidelines PDFs
Summary of the seven guideline documents shipped with the form bundle.
